Why a Construction Survey Is Critical When Private Improvements Connect to Public Infrastructure

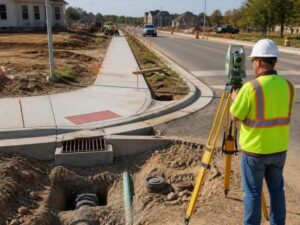

The point where a private development meets the public street is where two separate worlds have to line up perfectly. A construction survey is what makes that connection work. Private improvements connecting to public infrastructure, whether a new road tying into an existing street or a private sewer joining the public main, have to match the public system’s exact position and elevation. The survey locates the public tie-in, reconciles the different design references, and verifies the connection before it gets buried, preventing the kind of mismatch that’s expensive to fix later.
Locating the Public Tie-In Point Before Private Work Advances
Everything depends on knowing exactly where and how high the public connection sits, so the survey locates the tie-in point before the private work advances. The crew verifies the position and elevation of the streets, utilities, drainage systems, sidewalks and other receiving infrastructure.
This verification comes first for good reason. The private improvement has to meet the public system precisely, and that requires knowing the public infrastructure’s actual position, not its assumed one. Record drawings can be off, and infrastructure installed years ago might not sit exactly where the plans say.
Measuring the tie-in point directly removes the guesswork. By locating the real position and elevation of the public connection, the survey gives the private design a firm target to hit. Building the private work first and hoping it lines up with the public system invites a costly mismatch.
Reconciling Separate Public and Private Design References
Public and private projects often use different reference systems, and the survey reconciles them. Differences in datums, coordinate systems, plan versions, stationing and benchmarks can all produce connection errors if left unaddressed.
These mismatches cause real problems. The public infrastructure might be designed on one datum while the private project uses another, so their elevations don’t match even when both plans look correct. Different coordinate systems can place the same point in two locations. The survey identifies these differences and translates between the two systems.
Reconciling the references is what lets the connection work. Once the survey aligns the public and private design frameworks, the private improvement can be built to meet the public system accurately. Skipping this step is a common way connections end up misaligned, since two correct-looking plans on different references simply don’t agree.
Laying Out the Transition Across the Property Boundary
The connection happens across the line between private and public land, so the survey lays out the transition there. The grades, offsets, slopes, inverts, alignments and right-of-way limits all get established where the two systems meet.
This transition zone demands precision. A private road tying into a public street has to match its alignment and grade at the boundary. A private pipe joining a public main has to hit the right invert elevation. The survey stakes these details across the property line, so the private work transitions smoothly into the public infrastructure.
Respecting the right-of-way limits matters here too. The transition often crosses between private property and public right-of-way, each with its own rules and responsibilities. The survey establishes where that line sits and lays out the connection to work correctly on both sides of it.
Checking Installed Components Before the Connection Is Covered
Much of a connection gets buried, so the survey checks the installed components before they’re covered. Utility crossings, pipe ends, curb returns, subgrade and other concealed work get observed at the critical stages, while they’re still visible.
Timing these checks is essential. Once a pipe connection gets backfilled or a curb return gets paved, verifying it becomes difficult and expensive. The survey observes the work at the right moments, confirming the components are positioned and connected correctly before they disappear from view.
Catching a problem before cover saves enormous trouble. A pipe end at the wrong elevation, discovered after backfill, means digging it back up. The same problem caught before cover is a simple fix. By checking the critical components at the right stage, the survey prevents buried errors from becoming costly excavations later.
Providing Record Measurements for Acceptance and Maintenance
The connection’s documentation serves long after construction, so the survey provides record measurements for acceptance and maintenance. The verified as-built information supports inspections, approvals, dedication, ownership transfer and future repairs.
These records matter at handoff and beyond. When a private improvement connects to public infrastructure, the public agency often has to accept the work, and sometimes the ownership transfers. Accurate as-built measurements support that acceptance, showing the connection was built correctly. Dedication and approval depend on this documentation.
The records also help whoever maintains the connection later. Years down the line, a repair crew needs to know exactly where the connection sits and how it was built. The survey’s record measurements provide that information, so future maintenance starts with accurate data rather than a search for a buried connection.
