From Raw Terrain to Reliable Measurements: Drone LiDAR Mapping for Large Developments
Big development sites are messy, wide and hard to walk. Drone LiDAR mapping covers that ground fast and brings back detailed data. It captures terrain across brush and rough land that older methods struggle with. So it gives designers a solid picture of the site before heavy work begins. On large projects, that early accuracy saves time and cash. Getting the setup right, though, decides whether the data is any good. Here is how a strong LiDAR effort comes together.
Define the Mapping Outputs Before the Flight
Good data starts with a clear goal. Several settings shape how the flight gets planned. So the team defines these outputs before the drone leaves the ground. That keeps the data matched to the design needs.
The outputs worth setting up front include:
- Accuracy and point density targets
- Project limits and boundaries
- Contour intervals for the final surface
- File formats the design team can use
Skipping this step leads to wasted flights. Too little detail forces a re-fly, and too much bloats the files. Setting the targets first avoids both problems. The crew collects exactly what the designers will use.

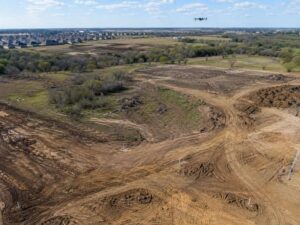

Capture Terrain Across Brush and Uneven Ground
Rough sites hide the ground under brush and weeds. LiDAR can reach through gaps in light vegetation better than photo-only methods. So it improves the ground model on brushy, uneven land. That gives a clearer surface for design work.
This strength matters on raw development tracts. Photos alone can miss the true ground under cover. LiDAR fills in more of that hidden terrain. The result is a model the design team can actually trust.
A clearer ground model means fewer surprises later. The designers see the real shape of the land early. That keeps grading and drainage plans honest.
Anchor the Aerial Data to Survey Control
Aerial data means little without ground truth. Survey control, check points and a set coordinate system tie the flight to reality. So the crew anchors the LiDAR data to that control. That step turns loose points into reliable measurements.
Control also lets the team check quality. Check points confirm the data lands where it should. Without them, errors can hide in a pretty point cloud. Solid control keeps the whole model honest and accurate.
The prettiest scan is worthless if it sits in the wrong place. Control fixes that. It ties every point back to the real world.
Convert Point Clouds Into Design-Ready Surfaces
A raw point cloud is not a usable surface yet. It needs work before an engineer can design from it. That process turns millions of points into clean, ready data.
Here is what typically happens along the way:
- Classify the points into ground, structures and vegetation
- Add breaklines to sharpen edges and grade changes
- Remove unwanted objects like brush, cars and equipment
After that cleanup, the data becomes a real terrain model. The design team can build grading and drainage plans on top of it.
Repeat the Mapping to Track Earthwork Progress
One flight is a snapshot, but a series tells a story. Repeated flights over time show how the earthwork is going. So repeat mapping supports cut-and-fill comparisons and construction monitoring. That keeps a big project on budget and on track.
Comparing flights catches problems early. You can see whether the grading matches the plan week to week. If the numbers drift, the team reacts before costs climb. Regular mapping turns raw terrain into a running progress report.
Progress you can measure is progress you can manage. Each flight shows how far the work has come. That keeps a large job from slipping quietly off course.
