Before a Corporate Campus Adds Another Building, Update the Topographic Survey
A large campus changes more than people notice. Every project shifts the ground a little. Grading, paving and new lines all add up over the years. An old topographic survey may no longer match what is there. Before a new building goes in, that survey needs a refresh.
Yesterday’s Surface Model May Not Match Today’s Campus
A topographic survey captures the shape of the land at one point in time. Campuses rarely stay still after that. Past grading, new pavement, utilities and landscaping all change the surface. A survey from years ago can quietly fall out of date.
The changes are easy to underestimate. A repaved lot, a new planter bed or a filled low spot each shift the surface a little. Add several years of these and the old model drifts far from reality. A fresh survey resets that picture to what stands there now.
A current picture also protects the budget. Designs based on bad grades often need late fixes. Those fixes cost far more than the survey did. Fresh data is the cheaper path by a wide margin.
A campus is a living site that keeps growing. Each project changes the ground for the next one. An updated survey keeps that record current. That way every new building starts from the truth.
Building on old data invites errors. Slopes and drainage may not flow the way the file shows. Design choices then rest on a picture that no longer holds. A fresh survey replaces that stale view with current facts. That swap is cheap next to a drainage fix later.
Capture the Existing Grades Around the Proposed Expansion Zone

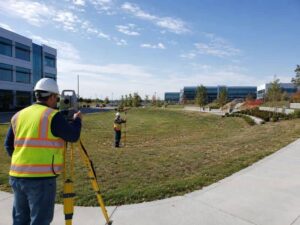

The new work needs current grades around its exact footprint. A topographic survey records elevations across that zone. It shows the highs, the lows and how the ground slopes. Those numbers guide how the new building sits.
The right area reaches a bit past the building itself. Water and access do not stop at the wall. Grades just outside the zone still shape the design. A short talk with the engineer sets the correct limits. That keeps the survey both focused and complete.
Tie New Work Back to Reliable Vertical Control
Every elevation needs a steady starting point. That point is called vertical control, tied to a known benchmark and datum. New work should tie back to the same control as the rest of the campus. That keeps all the numbers speaking the same language.
Mixing control points causes elevation errors. A slab or drain set to the wrong base can cause real problems. Holding one datum across the campus avoids that risk. It also makes future projects easier to line up. Consistency here pays off for years.
Existing Campus Infrastructure Should Not Be Treated as Blank Space
The area near the new building is rarely empty. Drainage, pavement, walks and other buildings already do real work. The survey should map these features, not ignore them. They shape how the new project connects to the site.
Treating a busy area as blank leads to conflicts. A new drive might clash with an old drain line. A pad might block how water once moved. Mapping what is there keeps the new design in step with the old. Surprises underground are the expensive kind.
Deliver Data the Design Team Can Integrate Into Current Plans
A survey is most useful when the design team can drop it right in. That means matching the file format and layers they use. Clear data lets engineers build on it without rework. Agreeing on the deliverables early saves time on both sides.
Talk through the outputs before the crew heads out. Confirm the datum, the format and the level of detail. When the data fits the design tools, the work flows smoothly. A good handoff keeps the whole project on schedule.
Frequently asked questions
When should an older topographic survey be updated?
Update it when the site has changed since the last one. New grading, pavement, utilities or buildings are all good reasons. A fresh survey gives the design team current, accurate ground data. Building on old elevations can lead to costly mistakes.
Can only part of a large campus be resurveyed?
Yes, a survey can focus on just the area around the new work. This keeps the scope and cost tied to what the project needs. The crew still ties that area back to the campus control. That link keeps the partial survey consistent with the whole.
Will a new topographic survey include recent site improvements?
Yes, a current survey captures the features that exist at the time of work. That includes recent pavement, drainage and structures in the survey area. The result reflects the campus as it stands today. This gives designers a true base to build on.
Why do engineers need current elevations for a building expansion?
Engineers use elevations to plan grading, drainage and how the building sits. Old or wrong numbers can send water the wrong way. Current data lets them design work that fits the real ground. That accuracy helps avoid problems during construction.
Should the same vertical datum be retained for later project phases?
Yes, keeping one datum across phases is important. It makes sure every elevation lines up from start to finish. Mixing datums between phases can create errors that are hard to trace. One steady reference keeps the whole project reliable.
